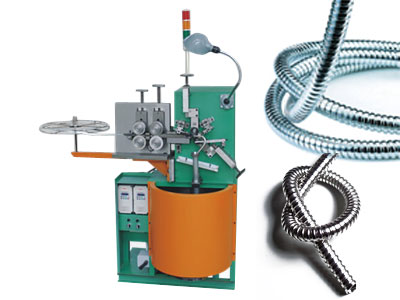

Flexible Metal Conduit Machine

Description
The blow out protection armor conduit is loose wounded, and interlocked protective armor hose, which was desinged for both armor and blow out protection. This flexible conduit is widely used to protect from abrasion, chemical contacts, crusing or even bending abuse. The plastic, PVC hoses or rubber hose can be protected, and also the conduit for wire or pipes. The MC 30 machine can make the metal armor conduit ranging from 1/2" to 1".
Features
1 Welded Structure
2 Galvanized / Stainless steel conduit

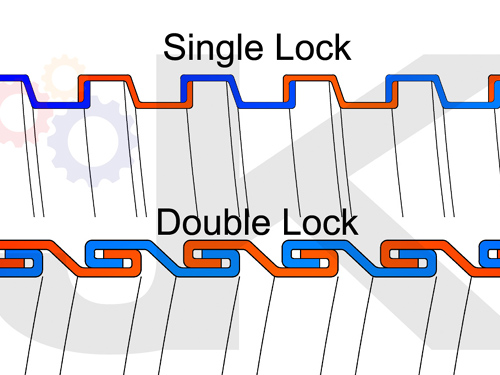

3 Single / Double lock

  • metal conduit lock type
More details
Technical Data
Model FMC1223
Tube Diameter 12~23mm
Steel Strip Thickness 0.16~0.25mm
Strip Width

7.1~9.5mm

Ducting Speed 80m/hour
Lock Type Single / Double Lock
Raw Material Galvanized, Stainless Steel
Main Power 380V/3P/1.5KW
Dimension 1100*1200*1500mm
Weight 350Kg
