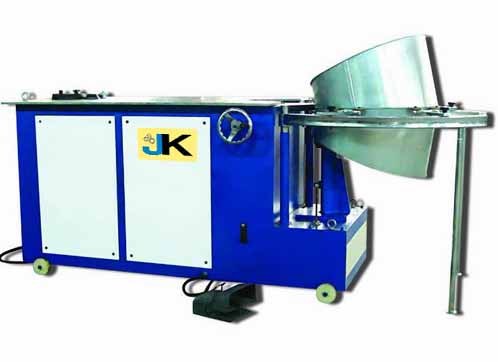

Elbow Making Machine |
|---|
Description
In HVAC duct work, the elbow is widely used for corners and turnings, the traditional manual work is heavy and noisy. You can easily make the elbow by this machine, without hard work and noise round your head.
The Economy type is half automatic, which has dual head, can do the flange operation and seam locking at the same time(2 seperated motors).
The Economy type is half automatic, which has dual head, can do the flange operation and seam locking at the same time(2 seperated motors).
Features
1 Dual working station
2 Forming N Locking
3 up to 1000mm elbow
2 Forming N Locking
3 up to 1000mm elbow
Downloads
More details
| Technical Data | ||
|---|---|---|
| Model | EM600 | EM1000 |
| Material Thickness | 0.4~1.0mm | 0.4~1.2mm |
| Diameter Range | 100~600mm(4"~24") | 100~1000mm(4"~40") |
| Main Motor | 1.5Kwx2 | 1.5Kwx2 |
| Dimension | 1650x800x1100mm | 1850x800x1100mm |
| Weight | 620Kg | 710Kg |
