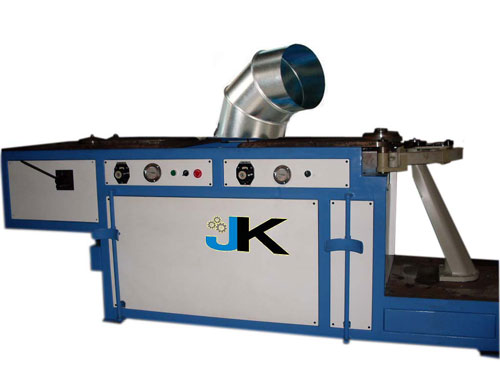

Hydraulic Elbow Making Machine |
|---|
Description
In HVAC duct work, the elbow is widely used for corners and turnings, the traditional manual work is heavy and noisy. You can easily make the elbow by this machine, without hard work and noise round your head.
The Hydraulic type has 2 operation station and a higher efficency which can make an 8" elbow in 90 seconds.
The Hydraulic type has 2 operation station and a higher efficency which can make an 8" elbow in 90 seconds.
Features
1 Dual working station
2 Forming N Locking
3 up to 1250mm elbow
4 Hydraulic operation
2 Forming N Locking
3 up to 1250mm elbow
4 Hydraulic operation
Downloads
More details
| Technical Data | |
|---|---|
| Model | HEM1250 |
| Material Thickness | 0.4~1.5mm Gavalized Steel/Aluminum 0.4~0.6mm Stainless Steel |
| Diameter Range | 125~1250mm(5"~50") |
| Main Motor | 5kw |
| Flanging Speed | Up to 120m/min |
| Dimension | 1650x800x1100mm |
| Weight | 750Kg |
