Flat pipe machine |
|---|
Description
The flat pipe machine works with the spiral corrugated duct machine to make the round duct into flat pipe. The flat pipe is for pore reserved in concrete project, like the bridges and other kind of construction works.
Video
More details
| Technical Data | |
|---|---|
| Model | CTF |
| Flat pipe size | 19x60mm~40x120mm |
| Material Thickness | Galvanized Stee0.25~0.6mm |
| Main Power | 1.5KW |
| Speed | 8m/min |

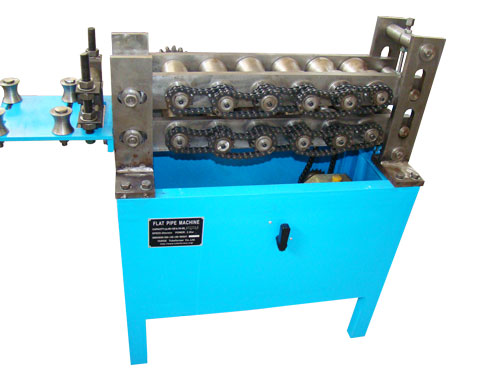

Flat pipe machine which can make the spiral corrugated duct into flat pipe when needed.
The flat pipe dimensions (other size on request)
|
a |
19 |
22 |
||||
|---|---|---|---|---|---|---|
|
b |
60 |
70 |
90 |
65 |
74 |
90 |
Flat pipe Mechnical property test results
| Item | Quality Standards |
|---|---|
| Anti concentrated load N (KgF) | 490 (50) not exceeding than the amount of deformation 0.2D |
| Anti evenly distributed load N (KgF) | P＝2（a＋b ) @ deformation of not more than 0.2D |
| Vertical leakage | using the tested pipe irrigation mud slurry does not leak |
| Axial tension N (KgF) | 980 (100) does not damage the bellows |
