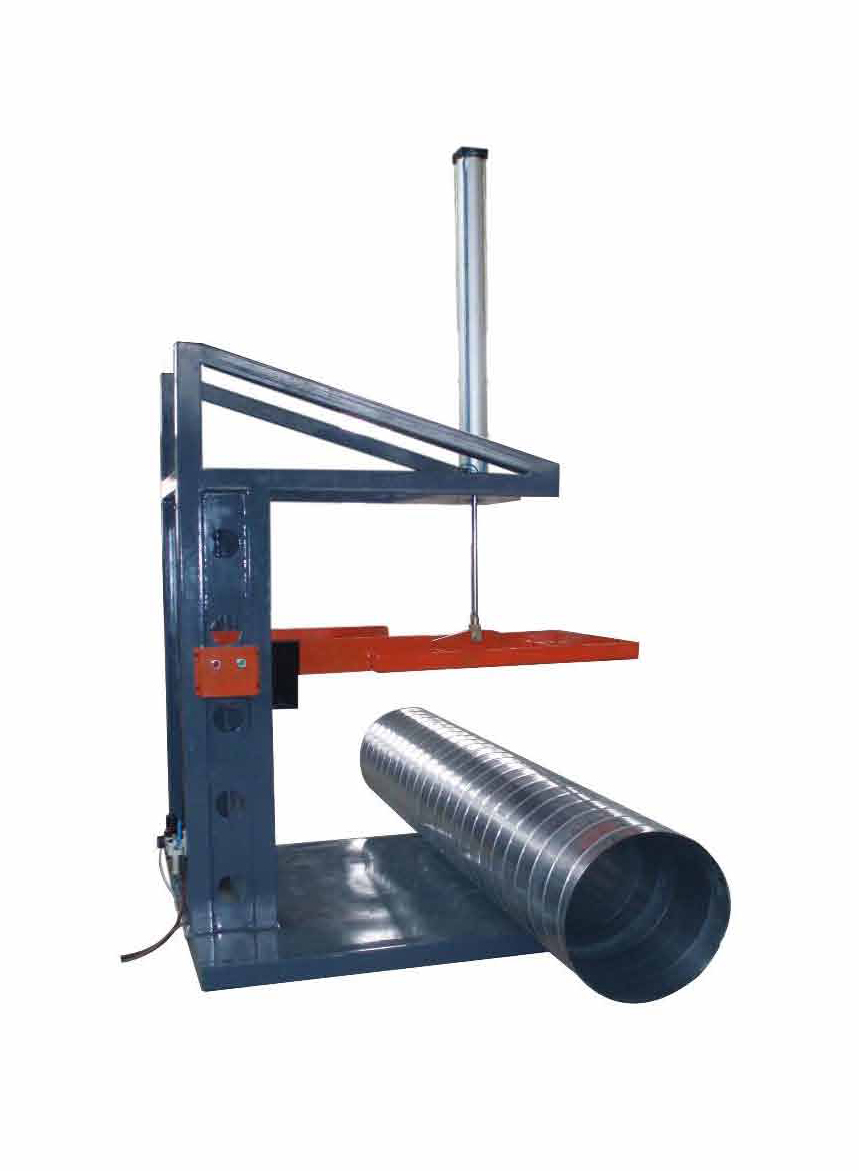

Oval Duct Machine |
|---|
Description
Oval duct has the advantage of excellent air tightness, high strength, which can save the installation space than spiral duct. The first step is pre-flat the spiral duct, and then the spiral duct is expanded to request size in one time. The oval duct machine can process the spiral duct from 500mm to 1500mm.
Features
1 Frequency changer controller
2 Integrated Hydraulic system
3 Easy operation
4 Diameter ranging from 500~1500mm
2 Integrated Hydraulic system
3 Easy operation
4 Diameter ranging from 500~1500mm
More details
|
Model |
ODM1500 |
|
Spiral Duct Diameter |
500~1500mm |
|
Material Thickness |
Maximum 1.5mm |
|

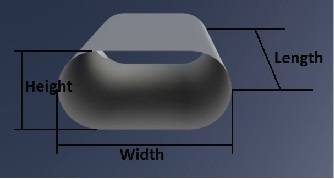

Oval Duct Size |
Height:180~500mm Width: 620~2500mm |
|
Length of Duct |
3000mm |
|
Integrated Hydraulic System |
25Mpa |
|
Power |
7.5KW |
|
Dimension |
5800*1350*1300mm |
|
Weight |
1000Kg |
