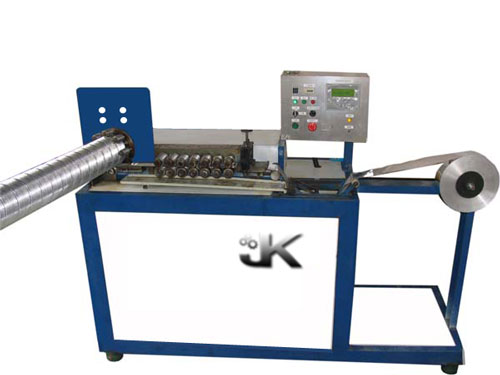

Aluminum Corrugated Tubeformer ACT1 |
|---|
Description
Aluminum tube is widely used in the kitchen, bathroom, air condition venting and HVAC system. The corrugated aluminum tube can easily compressed and strached, and the aluminum corrugated tube can change its shape and keep it.
Features
1 Fixed molds fast changing
2 4 / 7 waves
3 Helical tooth /Straight tooth lock
4 Enhanced rollers for Alu. and S.S
2 4 / 7 waves
3 Helical tooth /Straight tooth lock
4 Enhanced rollers for Alu. and S.S
Downloads
More details
| Technical Data | |
|---|---|
| Model | ACT1 |
| Tube Diameter | 75-300mm(3"~24") |
| Aluminum Foil Thickness | 0.06~0.15mm |
| Strip Width | 35~60mm |
| Feeding Speed | 45m/min |
| Corrugation number | 7 (4 on request) |
| Cutting system | Saw balde on request |
| Main Power | 1.5KW |
| Dimension | 1200*500*1200mm |
| Weight | 350Kg |
The Aluminum air corrugated duct made by ACT-1
The mouth shrunk machine is also available.
