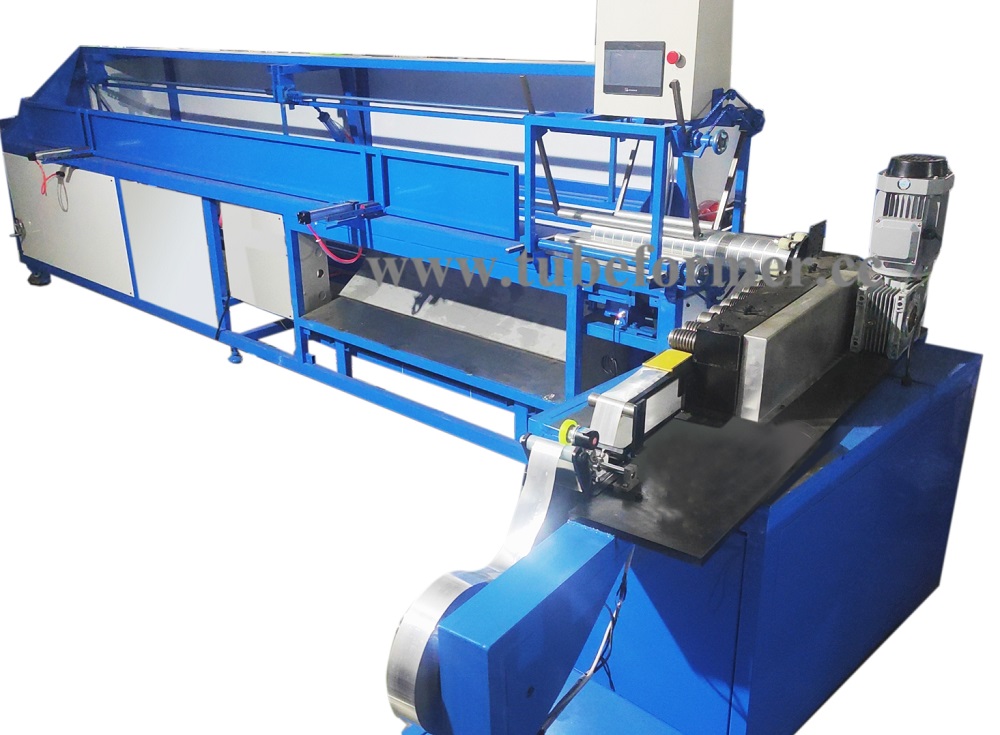

Aluminum Semi-rigid Flexible Duct Production Line |
|---|
Description
The semi rigid aluminum duct production line is the full automatic type, non-operator, totally save the cost.
Features
1 Full automatic type
2 Unattended operation
3 Capacity over 2000 meters one day
4 Touch screen operation
5 Cut to length system
6 Auto counting function
7 Raw material checking
8 MDD Motor Direct Drive
2 Unattended operation
3 Capacity over 2000 meters one day
4 Touch screen operation
5 Cut to length system
6 Auto counting function
7 Raw material checking
8 MDD Motor Direct Drive
More details
| Technical Data | |
|---|---|
| Model | ACT-L |
| Tube Diameter | 75-300mm(3"~24") |
| Aluminum Foil Thickness | 0.06~0.15mm |
| Strip Width | 60mm |
| Feeding Speed | 45m/min |
| Corrugation number | 7 (4 on request) |
| Cutting system | Saw Blade |
| Main Power | 3KW |
| Dimension | 4200*1200*1500mm |
| Weight | 500Kg |
The All New Autimatic Line

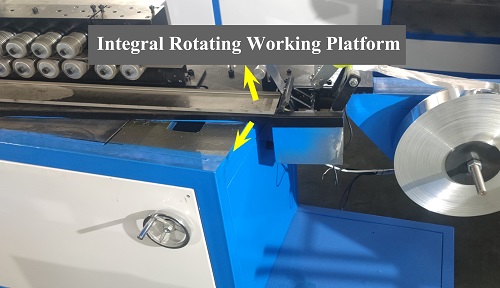

Integral Rotating Working Platform
Adjusting the angle of the working platform through handwheel will be more easier when replacing different mould.

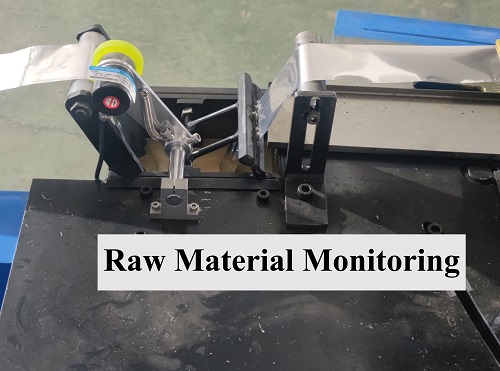

Raw Material Monitoring
All New JK program working with the encoder make the length setting more easier, and the machine will stop automaticly when the material runs out.
Moter Direct Drive
The all new MDD system can reduce the vibration and noise compare to old models. Lower power loss & Faster startup speed & Higher top speed.
