Aluminum Duct Forming Machine

Description
Aluminum wounded duct is widely used in the kitchen, bathroom, air condition venting and HVAC system. The corrugated aluminum duct is a semi-rigid flexible duct which can easily compressed and strached, and the aluminum wounded duct can change its shape and keep it. The moulds free disign can reduce the cost and can do any diameter that you want. The chpeast aluminum duct machine.
Features
1 Omnipotent moulds design
2 4 / 7 crouugations on request
3 Helical tooth / Straight tooth lock
4 Enhanced rollers for Alu. and S.S
Downloads
PDF
More details
Technical Data
Model ACT2
Tube Diameter 75-300mm(3"~24")
Aluminum Foil Thickness 0.06~0.15mm
Strip Width 35~60mm
Feeding Speed 45m/min
Corrugation number 7 (4 on request)
Cutting system Saw balde on request
Main Power 1.5KW
Dimension 1200*550*1200mm
Weight 300Kg

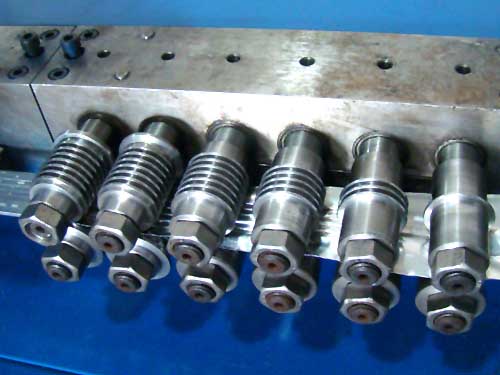

Special heat treatment rollers

aluminum duct forming machine rollers

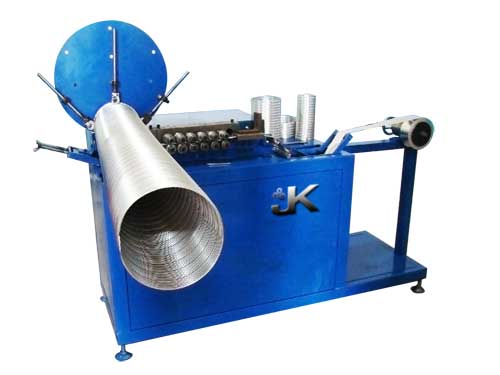

Aluminum duct which is semi rigid flexible duct, produced by Aluminum duct forming machine ACT-2.

aluminum wounded duct

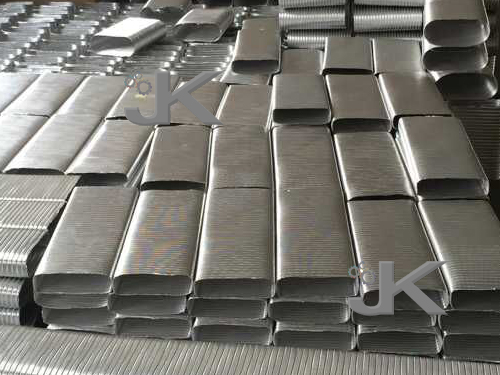

The Oval Aluminum Duct Machine now is available. More compact size, saving installation space.

Oval Aluminum Ducts
