PVC Aluminum laminated flexible duct machine |
|---|
Description
The PVC aluminum laminated flexible duct is the ordinary aluminum flexible duct which has the PVC coating for special propose. The PVC Aluminum laminated flexible duct can be widely used in HVAC systems like air conditioner and kitchen ventilator, also the bathrooms etc.
The new designed flexible duct machine has a compact form and tiny oven. Easier for transport.And the glue motor driven rolling system can save glue in big amount.
The new designed flexible duct machine has a compact form and tiny oven. Easier for transport.And the glue motor driven rolling system can save glue in big amount.
Features
1 Laminated Non-lamianted duct
2 Smart Oven
3 Fast change from non-laminated
2 Smart Oven
3 Fast change from non-laminated
Downloads
More details
| Technical Data | |
|---|---|
| Model | AFT2-P |
| Tube Diameter | 50~750mm(2"~30") |
| Aluminum Foil Thickness | 0.020~0.05mm |
| Stainless Steel Wire Dia. | 0.08~0.20mm |
| Raw Material | Single or Double layer aluminum composite(Alu.+PET+Alu.) & PVC Foil |
| Strip width | 45~60mm |
| Strip Speed | Up to 5m/min |
| Main Power | 1.5KW |
| Oven Heating Power | 300W |
| Dimension | 1750*650*1200mm |
| Weight | 180Kg |

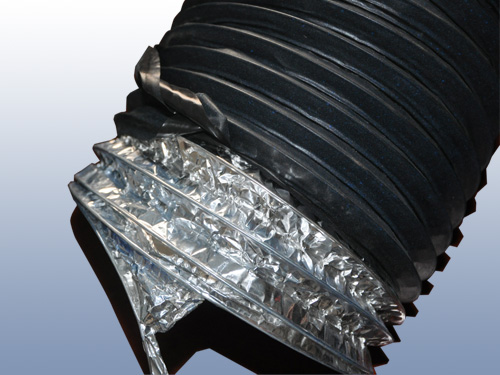

The aluminum flexible duct made by AFT2-P
The PVC aluminum laminated flexible duct technical data.
| Item | Test results |
|---|---|
| Diameter range | 75~300mm |
| Temperature Limit | -30℃~140℃ |
| Max. Air Flow Rate | 30m/s |
| Max. Air Pressure | 2500pa |
