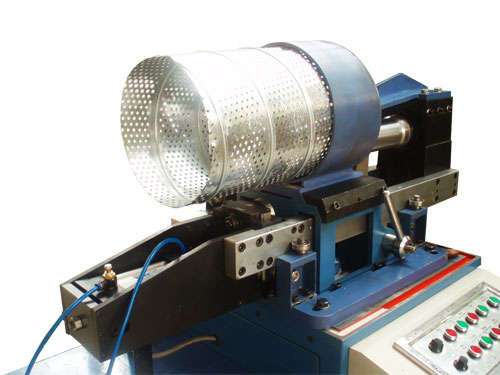

Spiral Perforated Tubeformer PT500

Spiral Perforated Tubeformer is made for the filter metal core, we supply two types of lockseam, one is outside lockseam, the other is inside lockseam, the diameter range from 80mm to 600mm.
1 Spiral perforated tube
2 Fixed molds type
3 Roll shear
4 No sparking & Quiet

More details
Technical Data
Model PT500
Tube Diameter 80~600mm(2.4"~18")
Material Thickness Galvanized Steel 0.5~1.0mm
Strip Width 137mm
Lock type Outside lockseam and Inside lockseam
Main Power 7.5KW
Cutting System Roll shear
Wight 1550Kg
Dimensions 3250x1860x1580mm

Spiral perforated tube

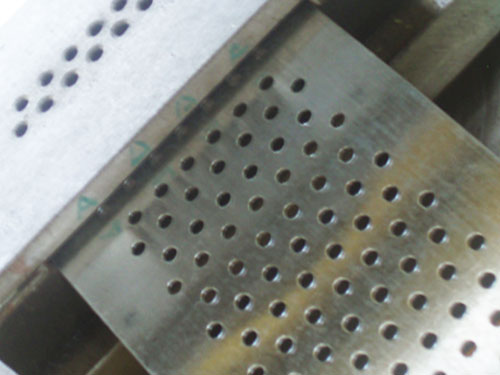

The 5mm holes made by puching holes system

puching holes system

Perforated spiral steel center tube for oil filter

Perforated spiral steel center tube
