Spiral Tubeformer ST80

Spiral tubeformer ST80 has the largest diameter range from 80mm to 1600mm, and use the special steel tape molds, which can reduce the molds cost heavily. Also the automatic cutting system can easily set any length to cut and has the reliable performance.The most economic spiral duct machine.
1 Ranging from 80mm~1600mm
2 Most economy type
3 Low cost for maintance
4 Saw blade cutting
5 PLC and Touch Screen
  • Spiral Duct
  • electrical
More details
Technical Data
Model ST80
Tube Diameter 80~1600mm(3"~62")
Material Thickness Galvanized Steel0.4~1.2mm
Stainless Steel0.4~0.8mm
Strip Width 137mm
Strip Speed up to 40m/min
Main Power 5.5KW
Cutting Power 4KW
Cutting Manner Saw Balde
Air Pressure Supply 0.5~0.7 Kpa
Dimension 2150*1950*2900mm
Weight 1560Kg

The economic type spiral duct machine ST-80 choose the spiral tape mould, which can save the cost a lot.

High quality stem from the superior work.

spiral duct machine PLC

The Mitsubishi PLC and Mitsubishi Frequency convertor.

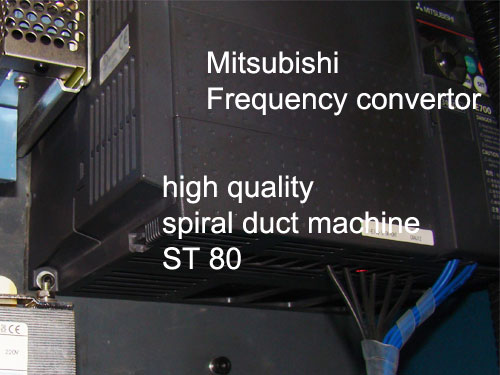

Spiral duct machine frequency convertor

So far as we know, the saw blade cutting system will worn out after few days of cutting, and also the saw blade cut end is not smooth like shear, and the most important thing is the noise, it is really noisy when cutting the spiral duct, so our engineers developed the latest plasma cutting, which is now available on ST80 and ST125.

Spiral duct machine plasma cutting
