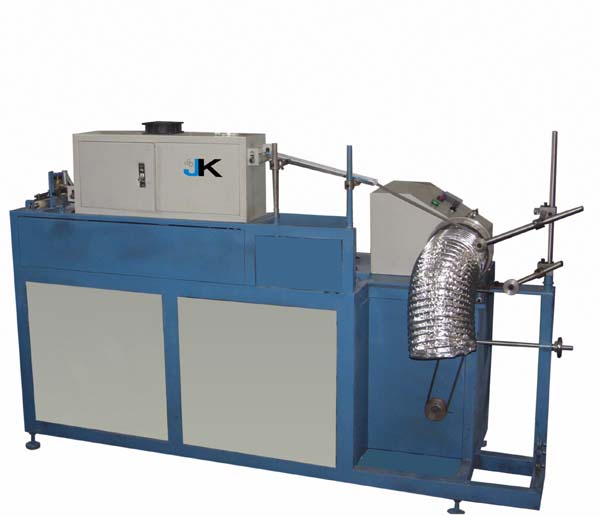

Aluminum Flexible Tubeformer

aluminum flexible tubeformer

Description

Aluminum tube is widely used in the kitchen, bathroom, air condition venting and HVAC system. The stainless steel wire inside can hold the flexible tube in shape and make the tube flexible.
The new designed flexible tubeformer has a compact form and tiny oven. Easier for transport.And the glue drop system can save glue in big amount.

Technical Data
Model AFT2
Tube Diameter 60~300mm(2"~12")
Aluminum Foil Thickness 0.05~0.15mm
Stainless Steel Wire Dia. 0.08~0.18mm
Raw Material Single or Double layer aluminum composite
Strip width 45~60mm
Strip Speed Up to 5m/min
Main Power 1.5KW
Oven Heating Power 300W
Dimension 1200*550*600mm
Weight 120Kg

The aluminum flexible duct made by AFT1

aluminum flexible duct

Aluminum Flexible Tubeformer AFT1 can make kinds of flexible duct,
1. The Aluminum Flexible Duct only contains aluminum composit foil and spring wire, this duct is widely used in ventilation system.
2. The Aluminum Flexible Duct with insulation, which is wrapped in a thick blanket of fiberglass insulation and a durable fiber textile barrier.
3. The Aluminum Flexible Duct with polyester. A double lamination of tough polyester which encapsulates a steel wire helix forms the air-tight inner core.
