Spiral Corrugated Tubeformer
Description

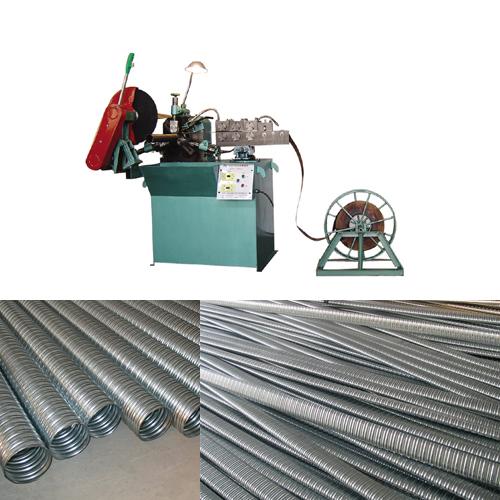

Spiral Corrugated Tubeformer is made for the concrete project, like the bridge building and other kinds of construction. CT78 is widely used in bridgeworks in and out board, which has a compact form and easy to transport.The spiral corrugated pipe machine can be taken to the construction site where the post tension pipe is needed.
| Technical Data | |
|---|---|
| Model | CT78 |
| Tube Diameter | 40~150mm(2"~6") |
| Material Thickness | Galvanized Stee0.25~0.3mm |
| Strip Width | 36mm |
| Corrugation Pitch | 28mm |
| Main Power | 4KW |
| Cutting System | Manual Saw Blade |

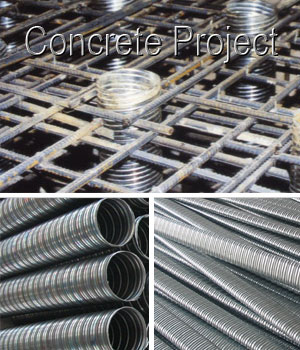

Spiral corrugated duct
