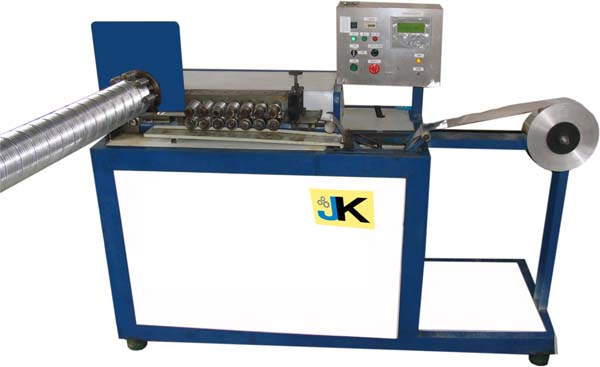

Aluminum Corrugated Tubeformer
Description
Aluminum tube is widely used in the kitchen, bathroom, air condition venting and HVAC system. The corrugated aluminum tube can easily compressed and strached, and the aluminum corrugated tube can change its shape and keep it.
| Technical Data | |
|---|---|
| Model | ACT1 |
| Tube Diameter | 75-300mm(3"~24") |
| Aluminum Foil Thickness | 0.06~0.15mm |
| Strip Width | 35~60mm |
| Feeding Speed | 45m/min |
| Corrugation number | 7 (4 on request) |
| Cutting system | Saw balde on request |
| Main Power | 1.5KW |
| Dimension | 1200*550*1200mm |
| Weight | 300Kg |
The aluminum corrugated duct made by ACT1
