Aluminum tube is widely used in the kitchen, bathroom, air condition venting and HVAC system. The stainless steel wire inside can hold the flexible tube in shape and make the tube flexible. The latest aluminum tubeformer can make the quality aluminum flexible duct, and also we can make the insulation for protecting heat.
Technical Data | |
---|---|
Model | AFT1 |
Tube Diameter | 60~300mm(2"~12") |
Aluminum Foil Thickness | 0.05~0.15mm |
Stainless Steel Wire Dia. | 0.08~0.18mm |
Raw Material | Single or Double layer aluminum composite |
Strip width | 45~60mm |
Strip Speed | Up to 5m/min |
Main Power | 1.5KW |
Oven Heating Power | 300W |
Dimension | 1200*550*1200mm |
Weight | 300Kg |

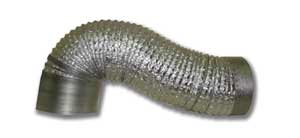

The aluminum flexible duct made by AFT1

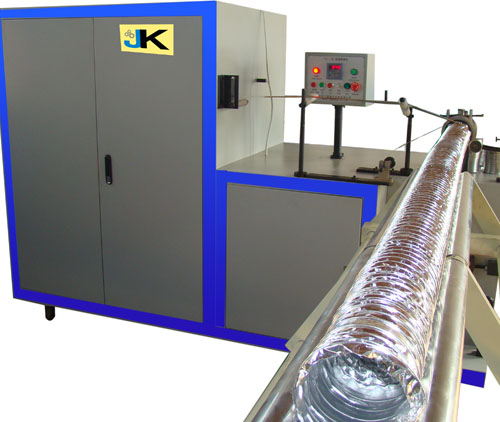

Aluminum Flexible Tubeformer AFT1 can make kinds of flexible duct,
1. The Aluminum Flexible Duct only contains aluminum composit foil and spring wire, this duct is widely used in ventilation system.
2. The Aluminum Flexible Duct with insulation, which is wrapped in a thick blanket of fiberglass insulation and a durable fiber textile barrier.
3. The Aluminum Flexible Duct with polyester. A double lamination of tough polyester which encapsulates a steel wire helix forms the air-tight inner core.
Zhangjiagang JK Machinery Co.,Ltd. is a senior supplier for industrial machinery and other products. Especially in the aluminum flexible tubeformer and the accesories, we also supply aluminum flexible duct.
