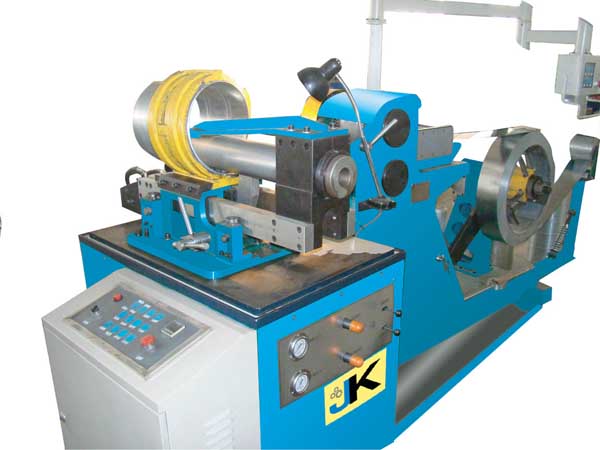

Spiral Tubeformer
Spiral tubeformer ST150 use the fixed molds, applies the latest flying slitter, which cuts the tubes to length without noise or hot sparks as known from the saws and provides smooth tube ends without deburring.
| Technical Data | |
|---|---|
| Model | ST150 |
| Tube Diameter | 150~1500mm(6"~60") |
| Material Thickness | Galvanized Steel0.4~1.2mm Stainless Steel0.4~0.8mm |
| Strip Width | 137mm |
| Strip Speed | up to 35m/min |
| Main Power | 19.12KW |
| Cutting System | Fliying slitter |
| Uncoiler | Max. Bearing 1200Kg |
| Dimension | 2150*1950*2900mm |
| Weight | 1560Kg |
With the help of our spiral duct machine, you can make the beautiful surface spiral duct, the special designed system can make the joint tight enough to bearing the air pressure through the duct.
The 0.5mm material can make the 100mm diameter duct which can endure 1677Kpa, more technical you can check: max air pressure through spiral duct.pdf
Zhangjiagang JK Machinery Co.,Ltd. is a senior supplier for industrial machinery and other products. Especially in the air duct forming machines and the accesories.
