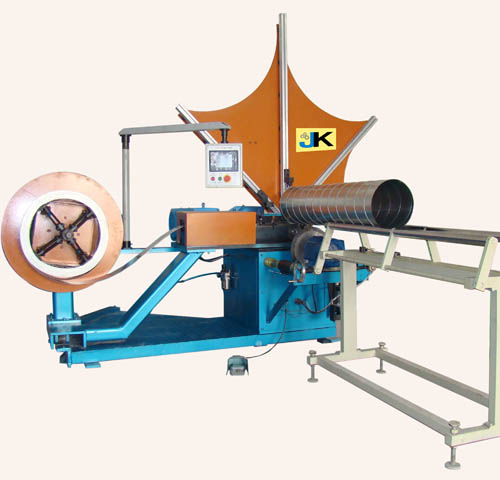

Spiral Tubeformer
Spiral tubeformer ST80 has the largest diameter range from 80mm to 1600mm, and use the special steel tape molds, which can reduce the molds cost heavily. Also the automatic cutting system can easily set any length to cut and has the reliable performance.The most economic spiral duct machine.
| Technical Data | |
|---|---|
| Model | ST80 |
| Tube Diameter | 80~1600mm(3"~62") |
| Material Thickness | Galvanized Steel0.4~1.2mm Stainless Steel0.4~0.8mm |
| Strip Width | 137mm |
| Strip Speed | up to 40m/min |
| Main Power | 5.5KW |
| Cutting Power | 4KW |
| Cutting Power | 4KW |
| Air Pressure | 0.5~0.7kpm |
| Dimension | 2150*1950*2900mm |
| Weight | 1560Kg |
With the help of our spiral duct machine, you can make the beautiful surface spiral duct, the special designed system can make the joint tight enough to bearing the air pressure through the duct.
The 0.5mm material can make the 100mm diameter duct which can endure 1677Kpa, more technical you can check: max air pressure through spiral duct.pdf
Zhangjiagang JK Machinery Co.,Ltd. is a senior supplier for industrial machinery and other products. Especially in the spiral tube forming machines, the ST80, which is the most economic spiral duct machine.
