Roll Forming Machine |
|---|
Description

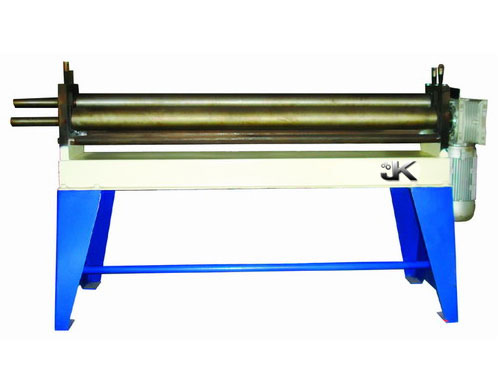

The R series 3 rollers roll forming machine has a hand adjusted up and down roller, which has pre-bend function and motor driven bending, the upper roller are removeable to take the finised sheet out.
After the sheet bended, the rolled sheet can be welded to form a round duct.
After the sheet bended, the rolled sheet can be welded to form a round duct.
Features
1 Pre-bending function
2 Motor driving
3 Top roller are removeable
2 Motor driving
3 Top roller are removeable
Downloads
More details
| Technical Data | ||
|---|---|---|
| Model | R2x1000 | R1.5x1270 |
| Maximum Thickness | 2mm | 1.5mm |
| Maimum Width | 1000mm | 1270mm |
| Minimum Diameter | 100mm | 100mm |
| Main Motor | 1.5KW | 1.5KW |
| Top Roller Dia. | 72mm | 72mm |
| Bottom Roller Dia. | 72mm | 72mm |
| Weight | 195Kg | 255Kg |
| Dimensions(mm) | 1480x530x1170 | 1750x550x1170 |

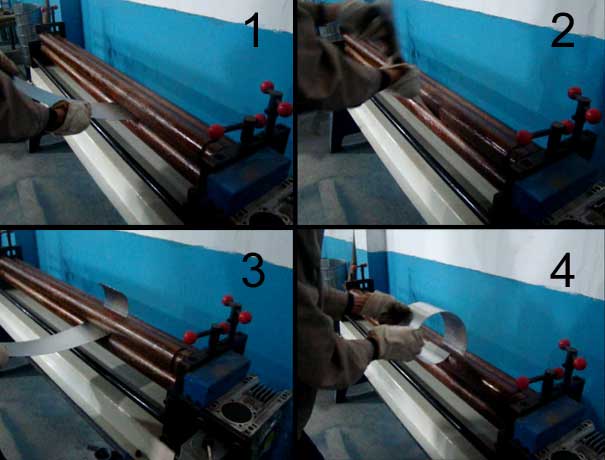

The roll forming machine working
