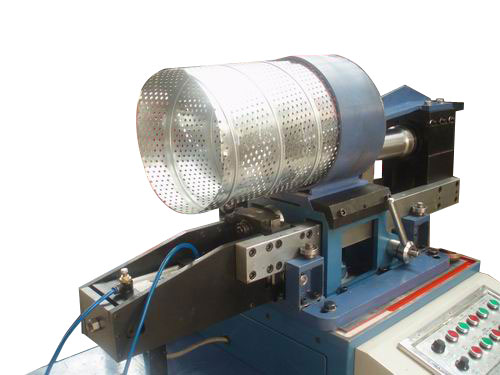

Spiral Perforated Tubeformer
Description
Spiral Perforated Tubeformer is made for the filter metal core, we supply two types of lockseam, one is outside lockseam, the other is inside lockseam, the diameter range from 80mm to 600mm.
| Technical Data | |
|---|---|
| Model | PT500 |
| Tube Diameter | 80~600mm(2.4"~18") |
| Material Thickness | Galvanized Steel 0.5~1.0mm |
| Strip Width | 137mm |
| Lock type | Outside lockseam and Inside lockseam |
| Main Power | 7.5KW |
| Cutting System | Roll shear |
| Wight | 1550Kg |
| Dimensions | 3250x1860x1580mm |
