Hydraulic Shears

High-speed Shearing Clean & Square Edges

JK Hydraulic Shears are highly productive, precise, and easy to handel. Based on years of expericen on metal processing, JK offers qualified Hydraulic Shears for thousands of customers.



JK Hydraulic Shears are going to be your most skilled assitant for your metal Shearing job, with them help, you just need to input the material, the thickness of the plate, the machine will calculate the force and the angle for the shearing.



When you purchase the JK Shears, you got not only machines, but the promise from our company, we will supply you the life time service in the future everyday since you got the machines.

Reinforced frame structure

Steel-welded construction, vibration to eliminate stress with high strength and good rigidity.

High-speed hydraulic sytem

Integrated hydraulic system, stable and reliable performance. New tech hydraulic system make sure minimized the tubes and connections and access and serviceability are more easier than traditional.
In order to run quietly, the internal gear pump is a reliable choice.

Blade

After the special heat treatment the tool steel is good in hardness and long life, the blade clearance can adjusted by hand wheel and the number marked on the plate. Adjust quickly and easily with good credibility.Blade stroke adjusted stepless, the pressure can adjusted according to the thickness automatically.
oil cylinder fitted in series to avoid the cutting angle change while shearing the plate.
The blades are designed in the rectangular shape, which has four cutting edges to prolong working life. Adjustable shearing angle to reduce deformation of the plate.

Delem CNC system

	Delem DAC 310		Delem DAC 350		Delem DAC 360
	Complete & Compact shearing solution		The modern shearing machine		State of the art electronics
	Featuring		Featuring		Featuring
	Bright LCD display		Clear LCD display		Bright LCD display
	Backgauge control		User friendly Programming		Backgauge control
	Gap control		Angle control		Retract function
	Stroke length limitation		Handwhell operated manual movement for optimal touch		Cutting angle control
	Actual and Programmed position visualization		Dialogue language is operator selectable		Cutting gap control
	Stock counter		Absolute/incremental measures		Stroke length limitation
	Programmable up to 100 steps		Powerdown position memorization		Manual movement of axes
	Panel-based housing		Inch/mm selection		Force control
	Panel based housing		2nd X-aixis optionally available

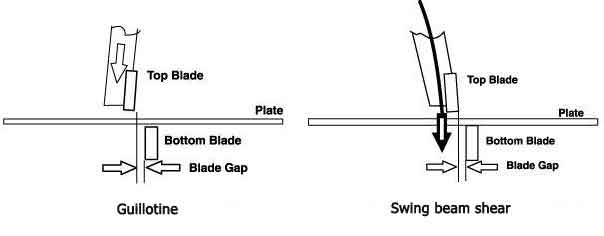

Guillotine & Swing Beam Shear

J&K Hydraulic Shears has major two types, the power shear guillotine and swing beam design. A guillotine shear has a moving blade that runs on straight slides. The moving blade is almost parallel to the fixed blade during the entire stroke. And the swubg vean design has a blade that pivots around a fixed point.

Specification for hydraulic shears

Model	Capacity	Max. Cutting Length	Strokes Per Minute	Back Gauge Range	Rake Angle	Throat	Drive Motor	Dimension
Unit	mm	mm	n/min	mm	°	mm	KW	mm
QC11K-4×2500	4	2500	25~45	600	0.5~1.5	100	5.5	3000*2000*1850
QC11K-6*2500	6	2500	25~45	750	0.5~1.5	120	7.5	3030*2075*1920
QC11K-6*3200	6	3200	16~45	750	0.5~1.5	120	7.5	3730*2075*1970
QC11K-6*5000	6	5000	11~40	750	0.5~1.5	120	7.5	5530*2075*2210
QC11K-6*6000	6	6000	9~36	750	0.5~1.5	125	7.5	6530*2075*2520
QC11K-7*7000	7	7000	7~28	750	0.5~1.5	125	7.5	7530*2075*2830
QC11K-8*2500	8	2500	20~45	750	0.5~1.5	125	7.5	3040*2075*1920
QC11K-8*3200	8	3200	16~45	750	0.5~1.5	125	7.5	3740*2075*1920
QC11K-12*3200	12	3200	7~35	1000	0.5~2	125,300	15	3810*2575*2420
QC11K-12*4000	12	4000	8~35	1000	0.5~2	125,300	30	4610*2575*2530
QC11K-16*4000	16	4000	12~40	1000	0.5~2.5	125,300	30	4630*2655*2570
QC11K-20*2500	20	2500	16~40	1000	0.5~2.5	125,300	30	3160*2855*2300
QC11K-20*4000	20	4000	12~40	1000	0.5~2.5	125,300	30	4660*2855*2720
